LVD-06MFP

Short Description:

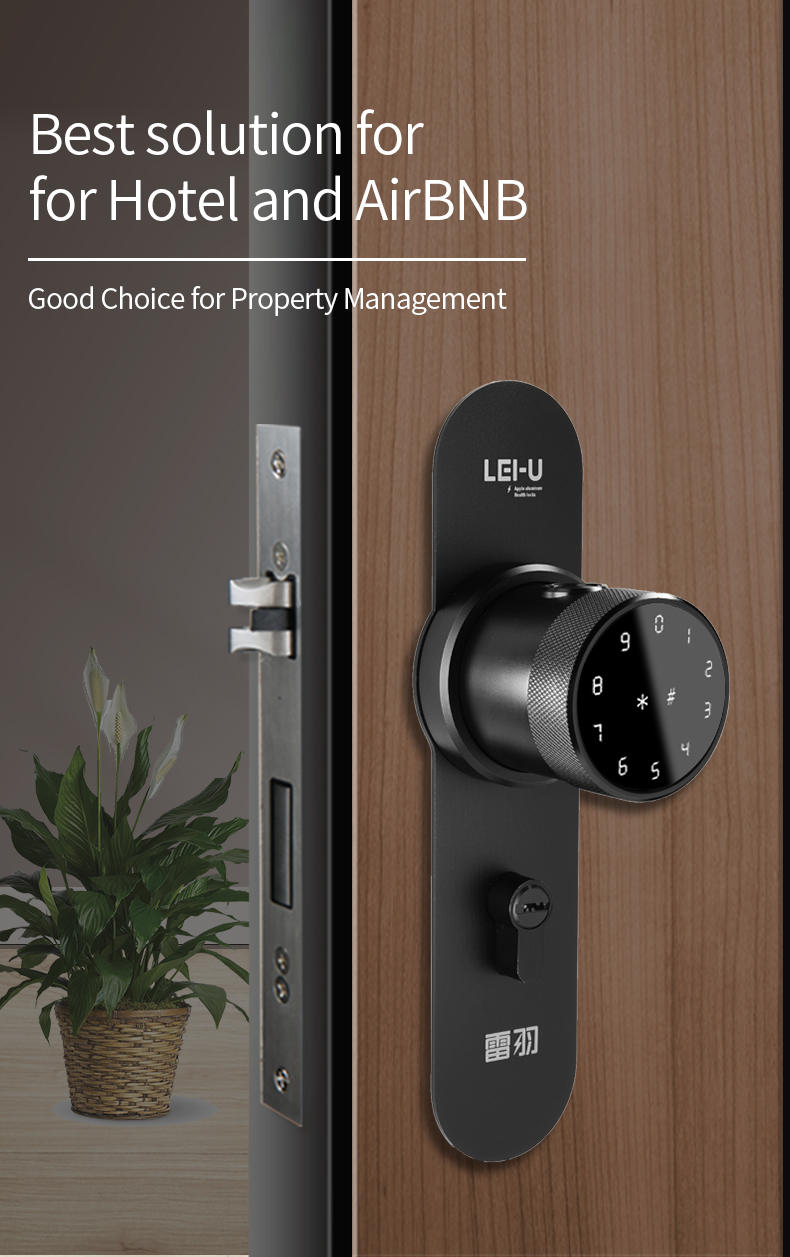

LEI-U Keypad Fingerprint Smart Door lock is a new type of intelligent door lock independently developed by our company. Have a variety of unlock methods: fingerprint, APP, password, mechanical key, IC card.

LVD-06MFP with mortise 72*55cm /86*60cm


Product Detail

Product Parameters

Product Features

Functions

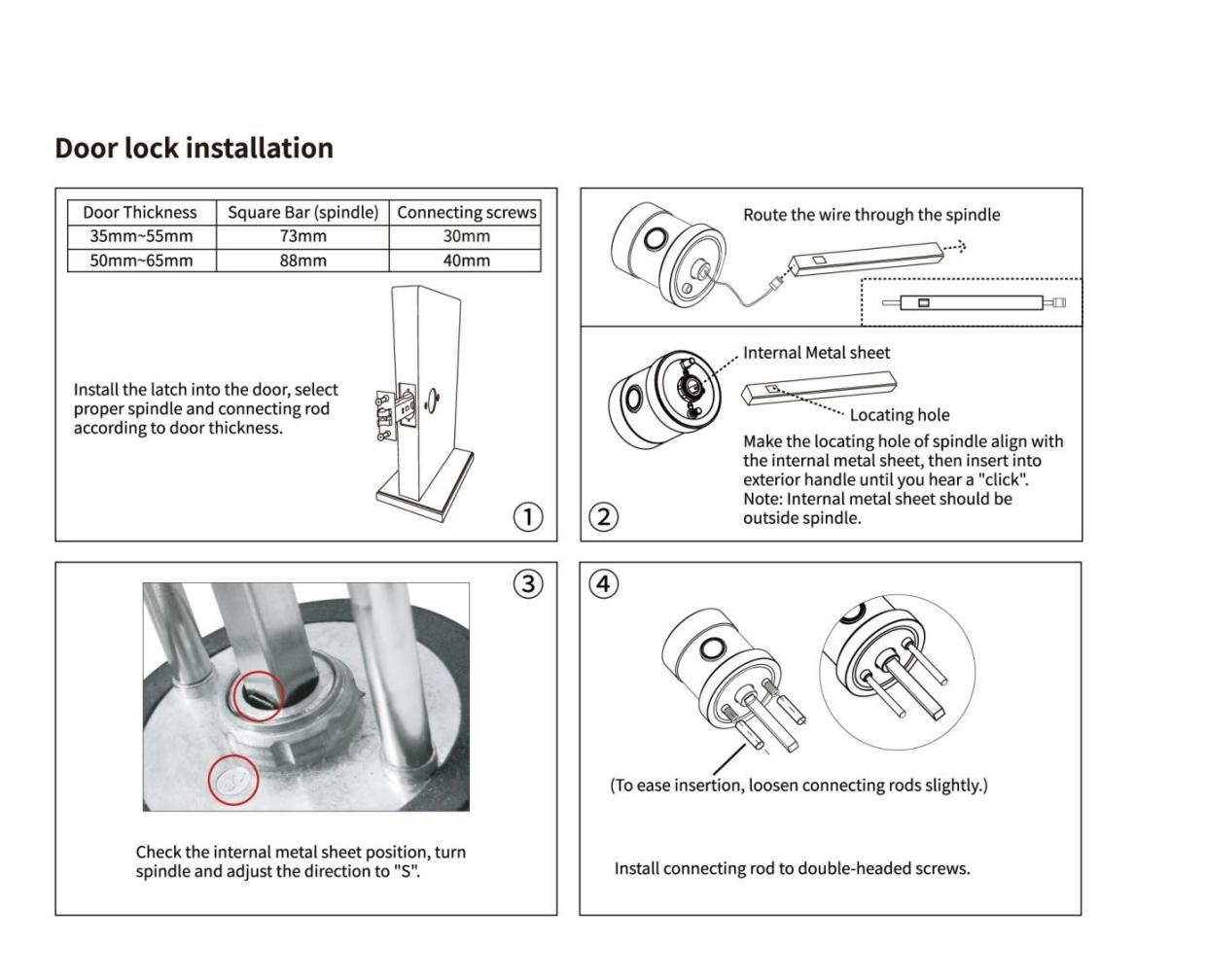

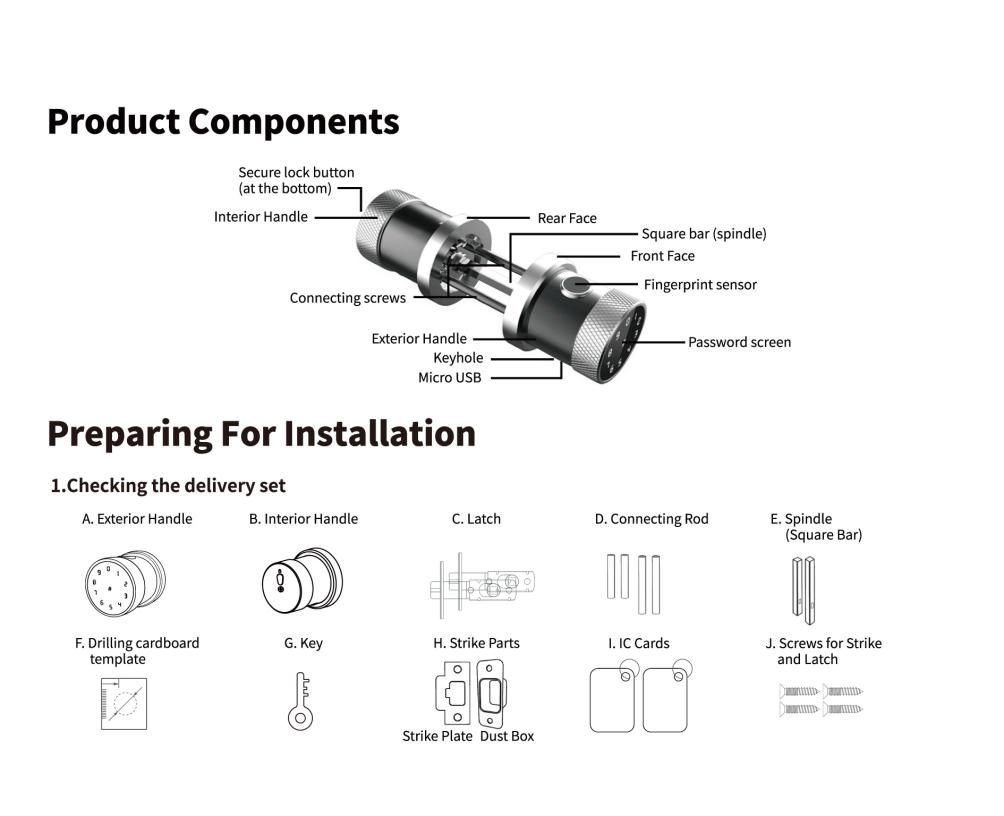

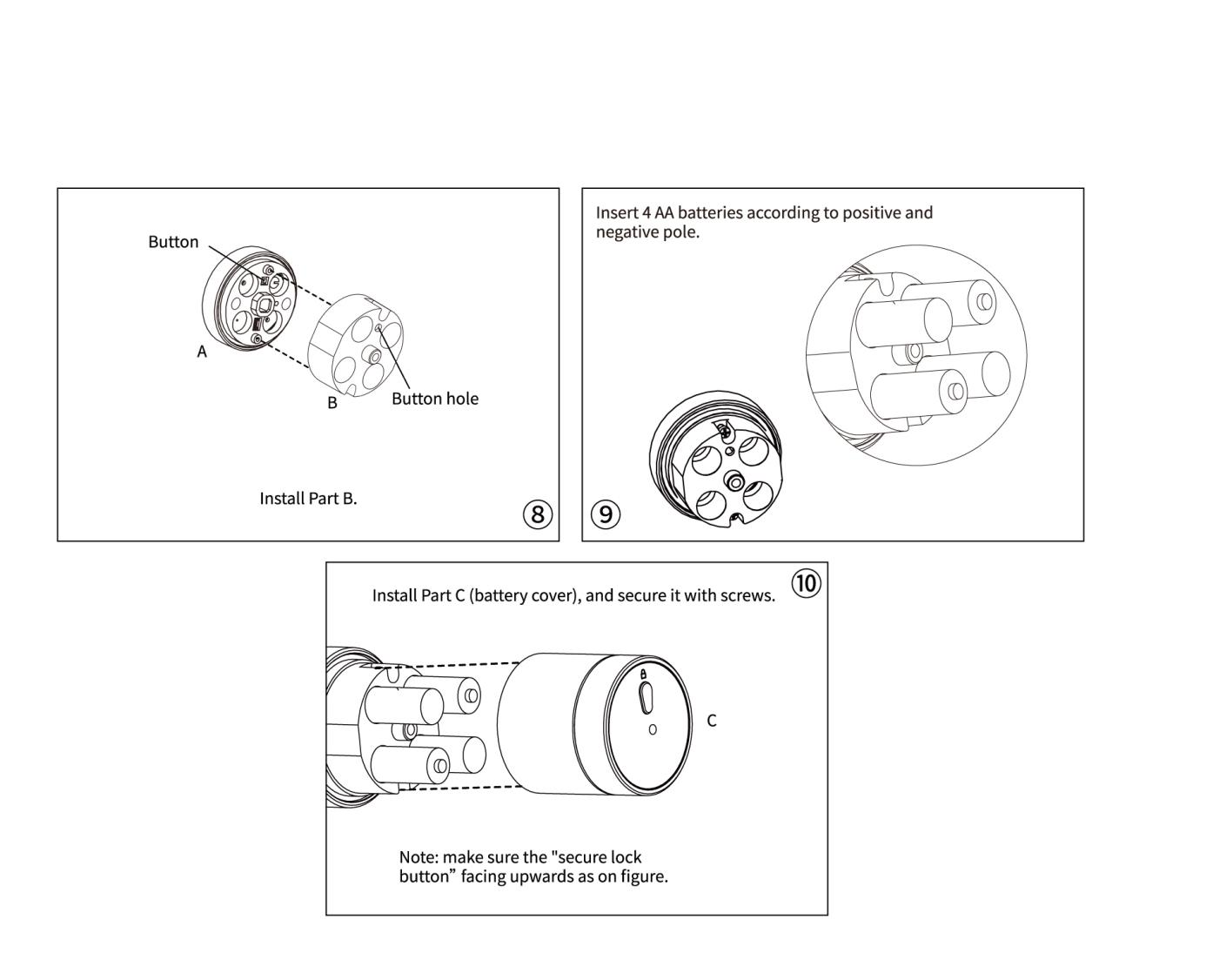

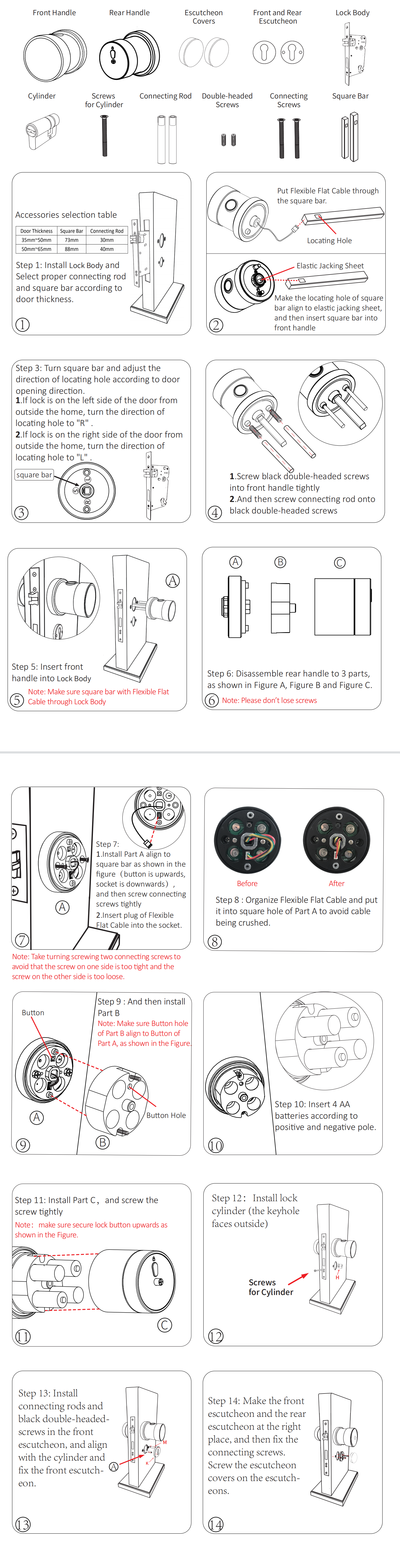

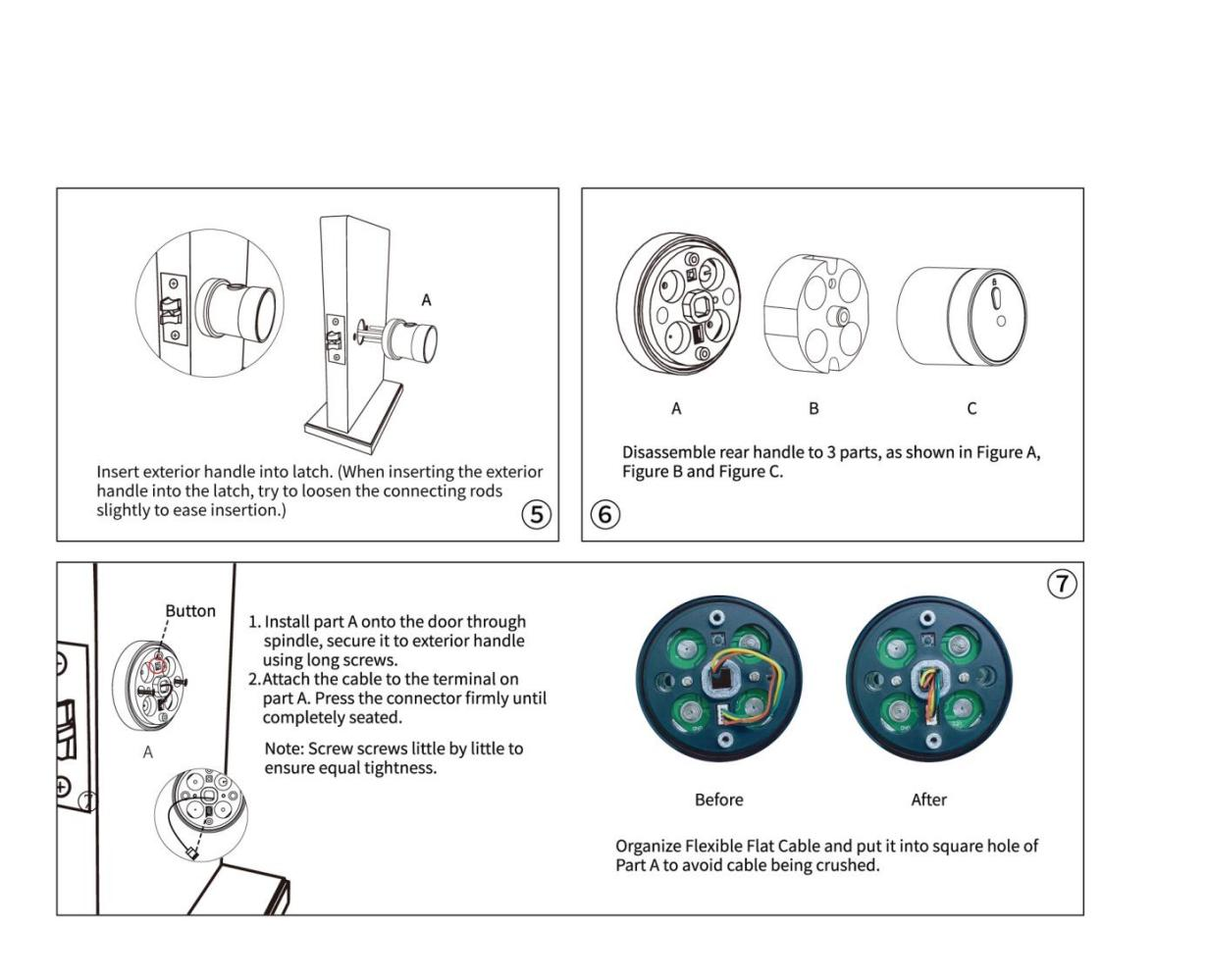

Installation

2 (1)
2 (2)
2 (3)
2 (4)
2 (5)
2 (6)
2 (7)
2 (8)
2 (9)
2 (10)
2 (11)

  • Previous:
  • Next:

    • Materials

      High Density Aluminium Alloy

    • Surface Treatment

      Anodization

    • Anodization

      Living fingerprint recognition, 0.5 second speed recognition

    • Administrator Capacity

      100 PCS

    • User Capacity

      100 PCS

    • Fingerprint Capacity

      100 PCS

    • Password Capacity

      20 PCS

    • IC Card Capacity

      50 PCS

    • APP

      TUYA APP (Bluetooth)

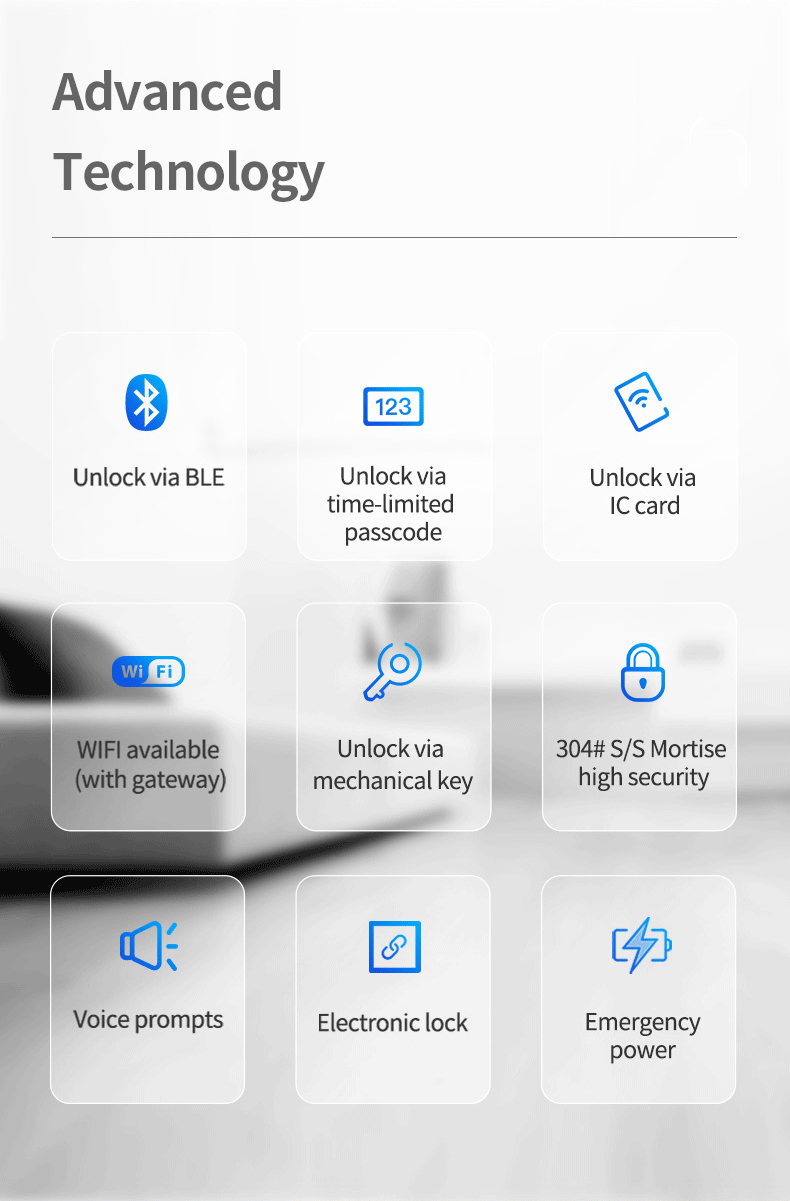

    • Unlock Mode

      Fingerprint(optional), Password, IC Card, Bluetooth, Keys

    • Fingerprint Resolution

      500 DPI

    • False Rejection Rate

      (FRR)<0.1%

    • False Accept Rate

      (FRA)<0.001%

    • Power Supply

      4 PCS AA Battery

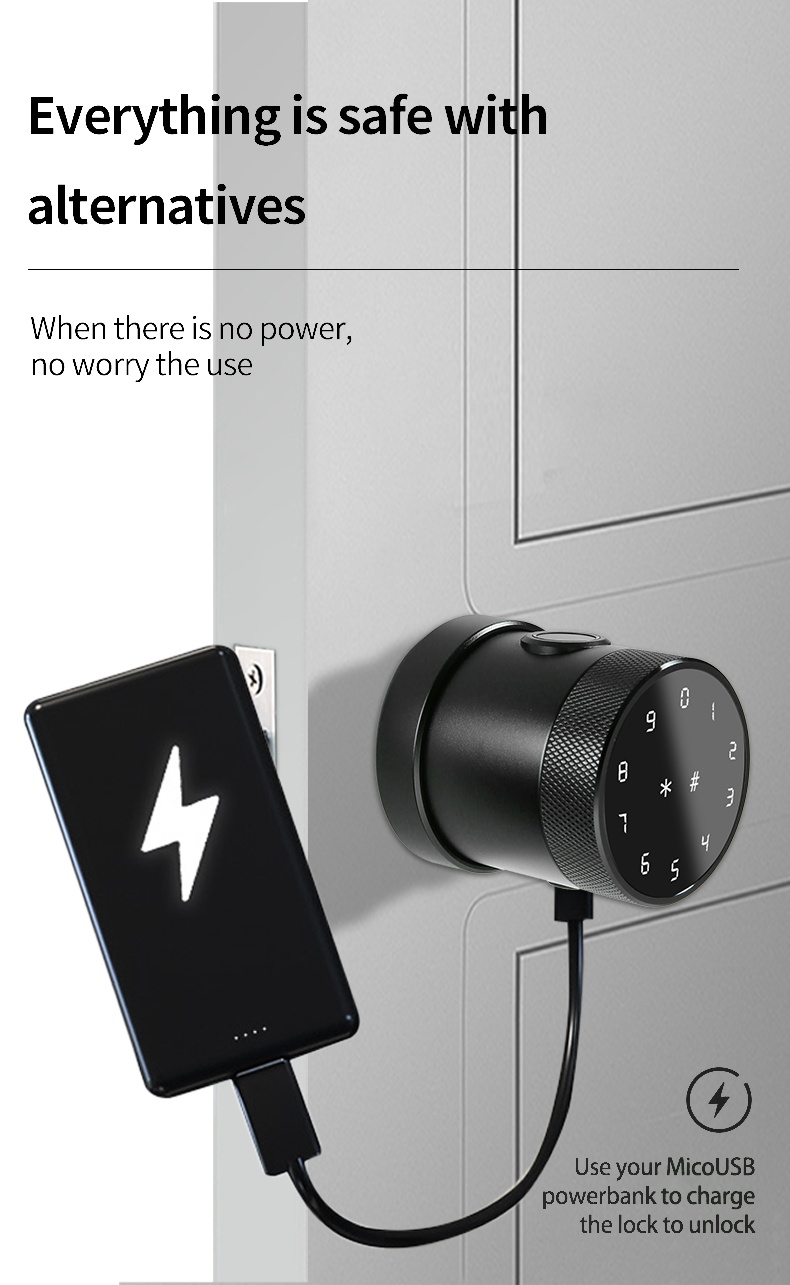

    • Backup Power

      USB Interface

    • USB Interface

      1 year

    • Work Temperature

      -25~65℃

    • Working Relative Humidity

      Working Relative Humidity

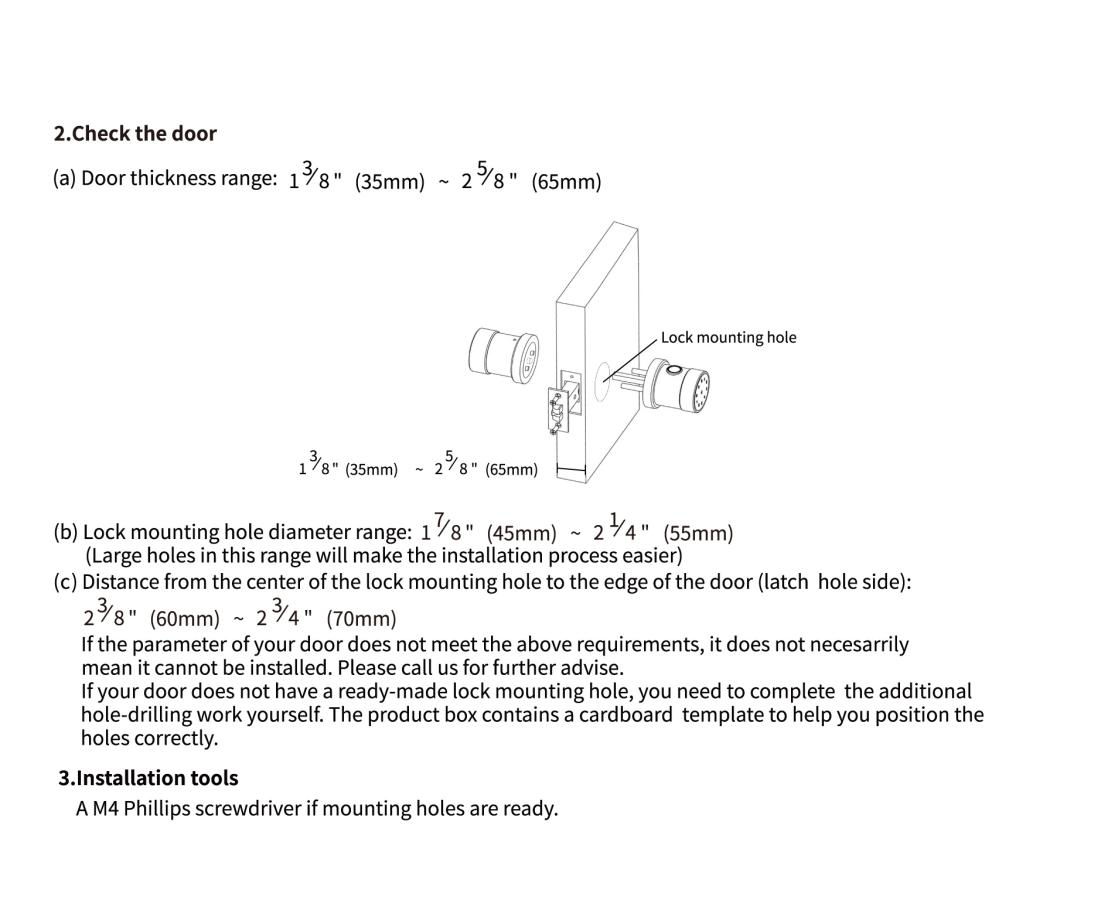

    • Door Thickness

      35mm--65mm

    • Lock Body

      Single-Latch,and suitable for the lock body which's backset is bigger than 45mm

    • Color

      Black, Silver, Brown,Gold

    1. Secure Lock Mode: Except for the passcode and APP of the administrator, all users’ fingerprints, passcodes and IC cards can not unlock the door.
    2. Send eKey: To authorize other users’ App permissions, the administrator clicks on and enter into Send eKey” in App, and input the mobile phone or email account registered by other users, with setting the authorization period as timed, permanent, one-time or cyclic, and then click on Send. The authorized user does not need to add the lock, and can use the app to open the lock within the authorization period.
    3. Generate Passcode: the administrator can generate a password on the App with 5 modes for your choice, including permanent, timed, one-time, custom and cyclic. For example, timed passcode can be set to be a valid passcode from 9 am to 11 am every Tuesday morning.



    1.passage Mode: When You Need To Open/close The Doors Frequently, You Can Turn This Mode On, And Then Everyone Can Unlock The Door Without Any Fingerprint, Ic Card, Password Or Bluetooth.

    2.secure Lock Mode: Except For App, All Users’ Fingerprints, Password And Ic Cards Can Not Unlock The Door.

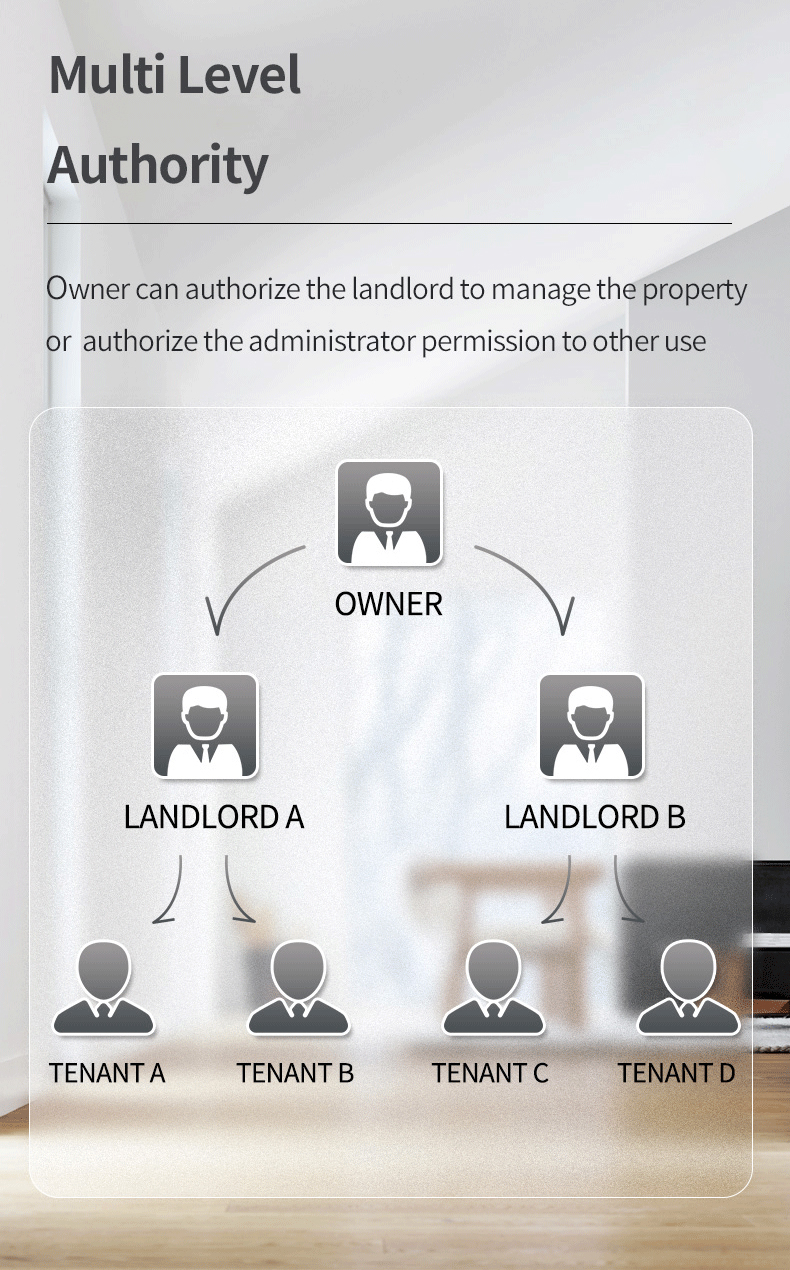

    3.member Management: There Are Two Types Of Members, Family Members And Other Members. Different Permissions Can Be Set According To Different Members.

    4.generate Password : The Administrator Can Generate A Password On The App With 2 Modes For Your Choice, Including Permanent, Timed And One-time.

    5.access Records Query: You Can Check All The Access Records At Anytime.

    6.apartment Management: This App Can Send The Temporary Passcode Directly, Check In And Check Out, Check The Tenant List, Check The Access Records, Add The List Of Branches, And Pay The Rent And Utility Fees.the Landlord Can Send The Rent Bill To The Tenant By Tt Renting App. The Bill Can Include: Rent, Water And Electricity, Gas, Property And So On. This App Provides A All-feaured Mobile Management Function For Apartment And Tenement.
